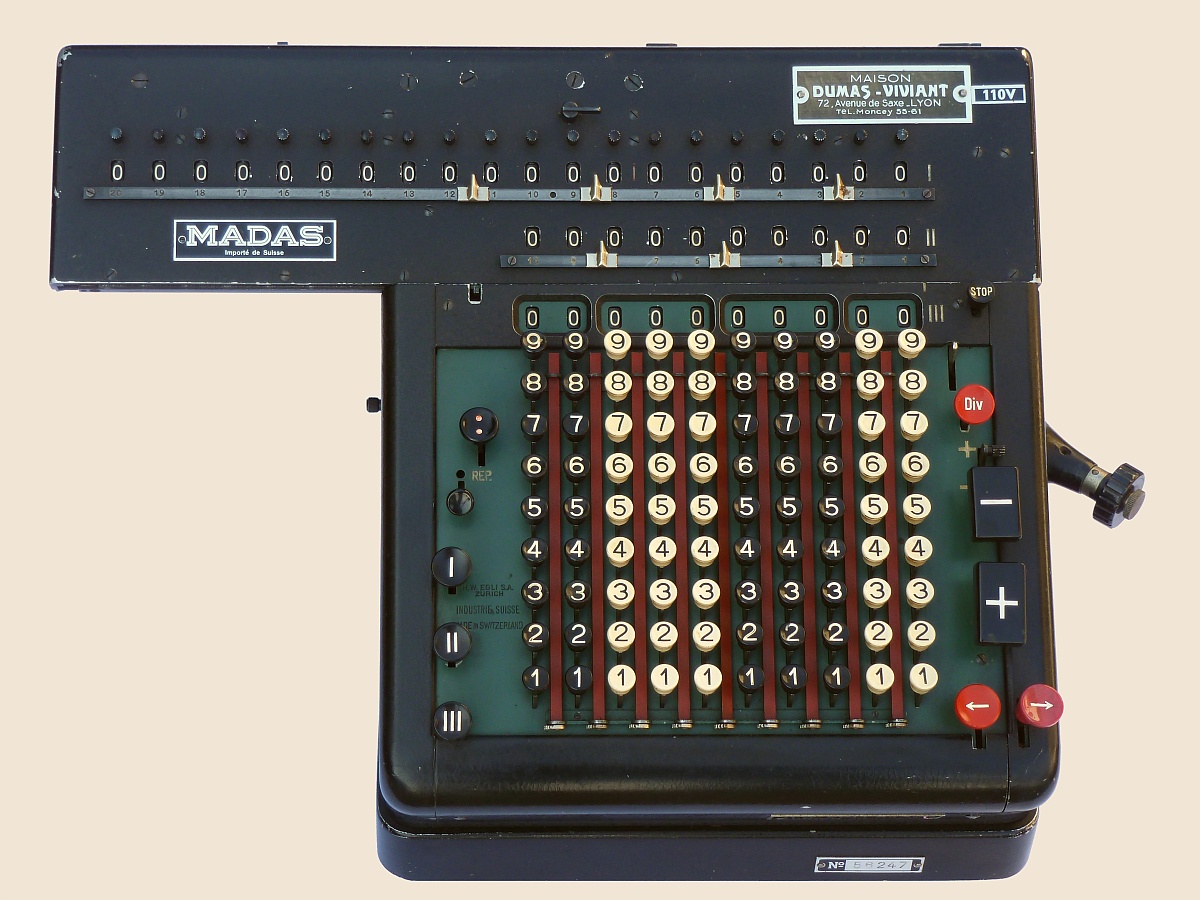

20LV#56247

Like the 20L, this model is the first machine (series ā€œLā€) with all the functions, arithmetic or carriage shifts, being electrically-driven. New keys were added to move the carriage, clear the Registers, and begin operations. The difference, compared to the 20L, is the presence of a “Dividend setup” key. While both machines, 20L and 20LV, have an “automatic division” ability, the 20LV is the first and the simplest model of all, provided with the “Dividend setup” key.

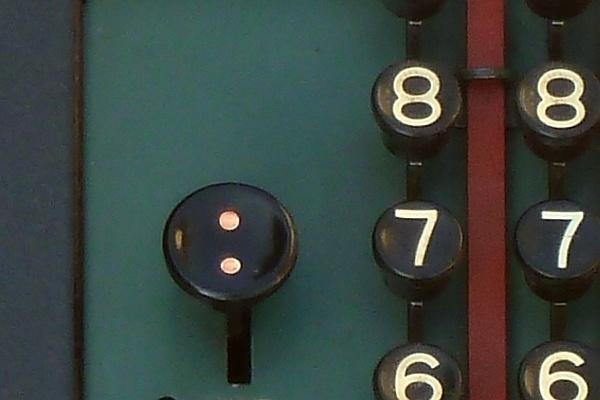

20LV#56247_c


The 20LV is the only model, in the “20” family, having the “Dividend setup” key, which has still the old transmission system between the external button and the main central shaft. This external button is diagonally connected. On the more evolved models, the button is orthogonally connected.

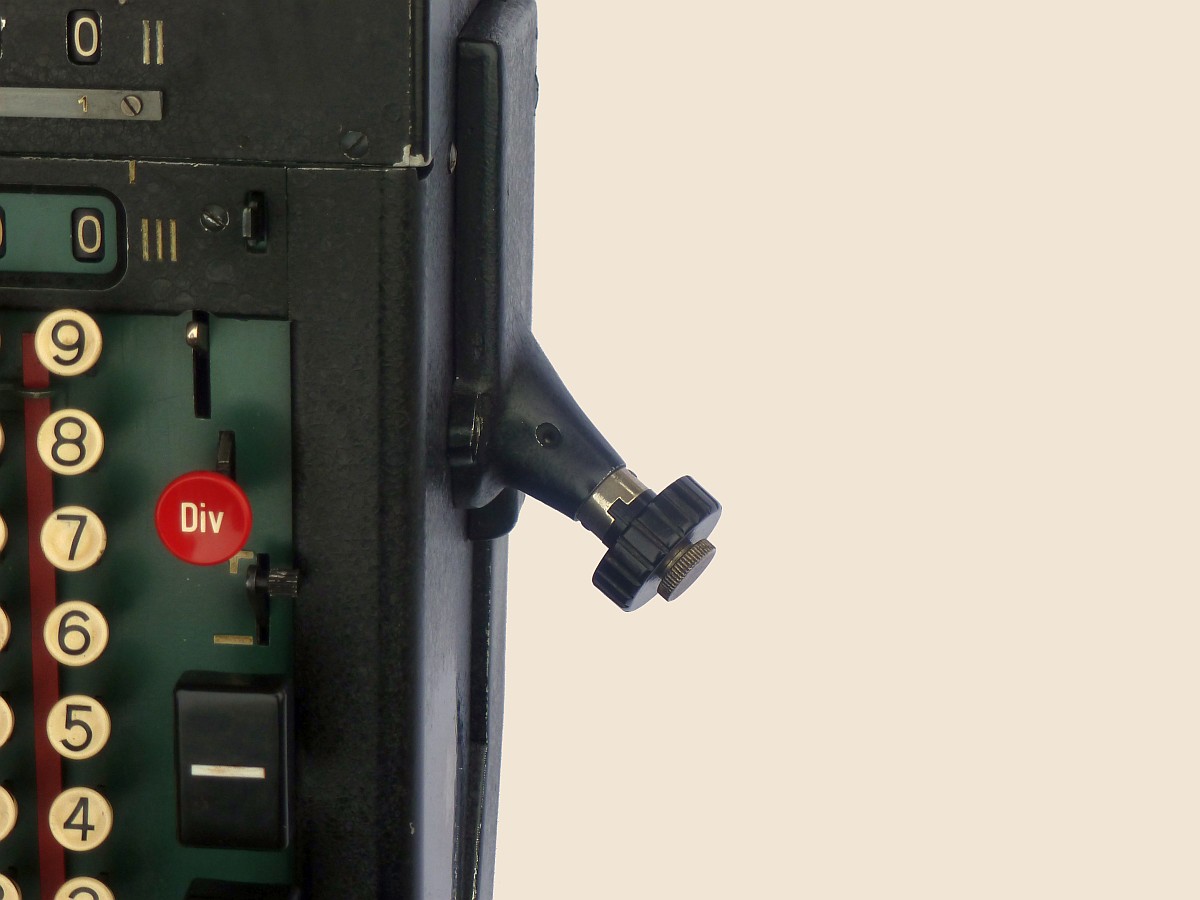

20LV#56247_d

The great improvement, with regard to the arithmetic operations, is the user-friendliness of negative values, in particular fully automatic positive and negative division, with button for optional stop before completion. The knobs, in the upper part of the carriage, allow direct setting of dividends when using constant divisor.

The shift-keys enable easily the operator to choose into which dials of the “Register I” the number set on the keys is added or from what dials it is subtracted. Multiplication is still performed semi-automatically by means of a sequence of carriage shifts and additions (or subtractions).

“Register I” shows 20 digits, “Register II” and “Register III” show 10 digits each.

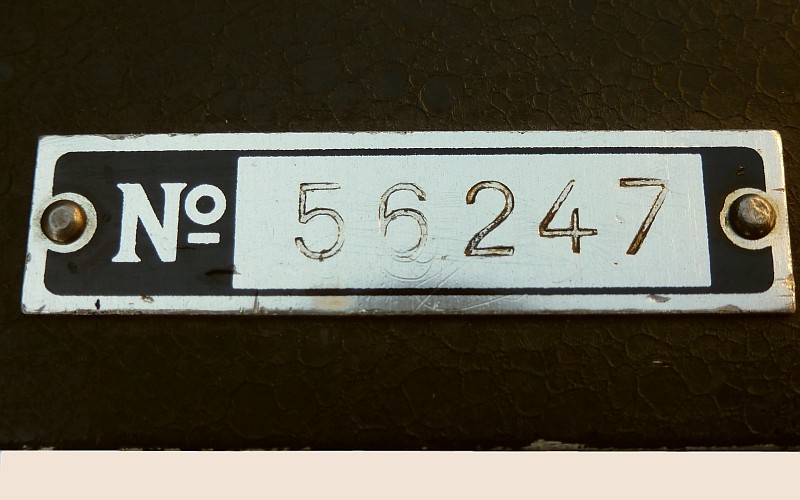

20LV#56247_b
